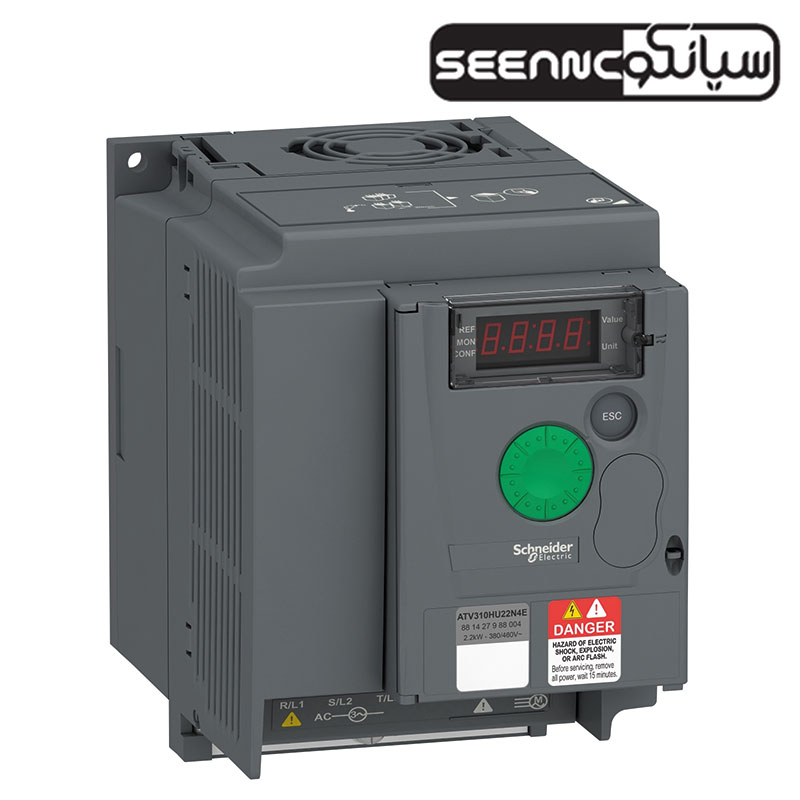

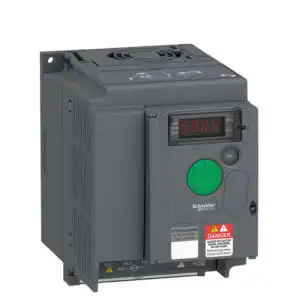

معرفی و خرید اینورتر سه فاز اشنایدر فرانسه مدل ATV310HU22N4E

380…460 V – 15…10 %

Product destination

Quantity per set

EMC filter

Type of cooling

50/60 Hz +/- 5 %

Supply frequency

Communication port protocol

Connector type

Physical interface

Transmission frame

4800bit/s

9600bit/s

19200bit/s

38400bit/s

Transmission rate

1…247 for Modbus

Number of addresses

Read holding registers (03) 29 words

Write single register (06) 29 words

Write multiple registers (16) 27 words

Read/write multiple registers (23) 4/4 words

Read device identification (43)

Communication service

7.2A

46.6A

Line current

5.7kVA

31.2kVA

Apparent power

5kA

5kA

Prospective line Isc

5.5A at 4 kHz

36A at 4 kHz

Continuous output current

8.3A for 60 s

39.6A for 60 s

Maximum transient current

66.32W at In

517.6W at In

Power dissipation in W

0.5…400 Hz

Speed drive output frequency

Nominal switching frequency

2…12 kHz adjustable

Switching frequency

1…20

Speed range

 170…200 % of nominal motor torque depending on drive rating and type of motor

Transient overtorque

Up to 150 % of nominal motor torque with braking resistor at high inertia

Up to 70 % of nominal motor torque without braking resistor

Braking torque

Quadratic voltage/frequency ratio

Energy saving ratio

Sensorless flux vector control

Asynchronous motor control profile

Preset in factory

Adjustable

Motor slip compensation

380…460 V three phase

Output voltage

Electrical connection

0.8…1 N.m

Tightening torque

Insulation

Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and shortcircuit protection

Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection

Supply

Analogue input number

Configurable current AI1 0…20 mA 250 Ohm

Configurable voltage AI1 0…10 V 30 kOhm

Configurable voltage AI1 0…5 V 30 kOhm

Analogue input type

Discrete input number

Programmable LI1…LI4 24 V 18…30 V

Discrete input type

Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm

Positive logic (source), 0…< 5 V (state 0), > 11 V (state 1)

Discrete input logic

10 ms for analogue input

20 ms, tolerance +/- 1 ms for logic input

Sampling duration

+/- 0.3 % of maximum value for analogue input

Linearity error

Analogue output number

AO1 software-configurable voltage: 0…10 V, impedance: 470 Ohm, resolution 8 bits

AO1 software-configurable current: 0…20 mA, impedance: 800 Ohm, resolution 8 bits

Analogue output type

Discrete output number

Logic output LO+, LOProtected

relay output R1A, R1B, R1C 1 C/O

Discrete output type

Minimum switching current

2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay

2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay

3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay

4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay

Maximum switching current

U

S

Linear from 0…999.9 s

Acceleration and deceleration ramps

Braking to standstill

Line supply overvoltage

Line supply undervoltage

Overcurrent between output phases and earth

Overheating protection

Short-circuit between motor phases

Against input phase loss in three-phase

Thermal motor protection via the drive by continuous calculation of I²t

Protection type

 Analog input: converter A/D, 10 bits

Display unit: 0.1 Hz

Frequency resolution

Time constant

Vertical +/- 10 degree

Operating position

Height

Width

Depth

Net weight

Electrical fast transient/burst immunity test – test level: level 4 conforming to EN/IEC 61000-4-4

Electrostatic discharge immunity test – test level: level 3 conforming to EN/IEC 61000-4-2

Immunity to conducted disturbances – test level: level 3 conforming to EN/IEC 61000-4-6

Radiated radio-frequency electromagnetic field immunity test – test level: level 3 conforming to EN/

IEC 61000-4-3

Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11

Surge immunity test – test level: level 3 conforming to EN/IEC 61000-4-5

EN/IEC 61800-3

EN/IEC 61800-3

IP20 without blanking plate on upper part IP41 top

2 conforming to EN/IEC 61800-5-1

Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3

Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3

15 gn conforming to EN/IEC 60068-2-27 for 11 ms

5…95 % without condensation conforming to IEC 60068-2-3

5…95 % without dripping water conforming to IEC 60068-2-3

-25…70 ℃

-10…55 ℃ without derating

55…60 ℃ protective cover from the top of the drive removed with current derating 2.2 % per ℃

<= 1000 m without derating
