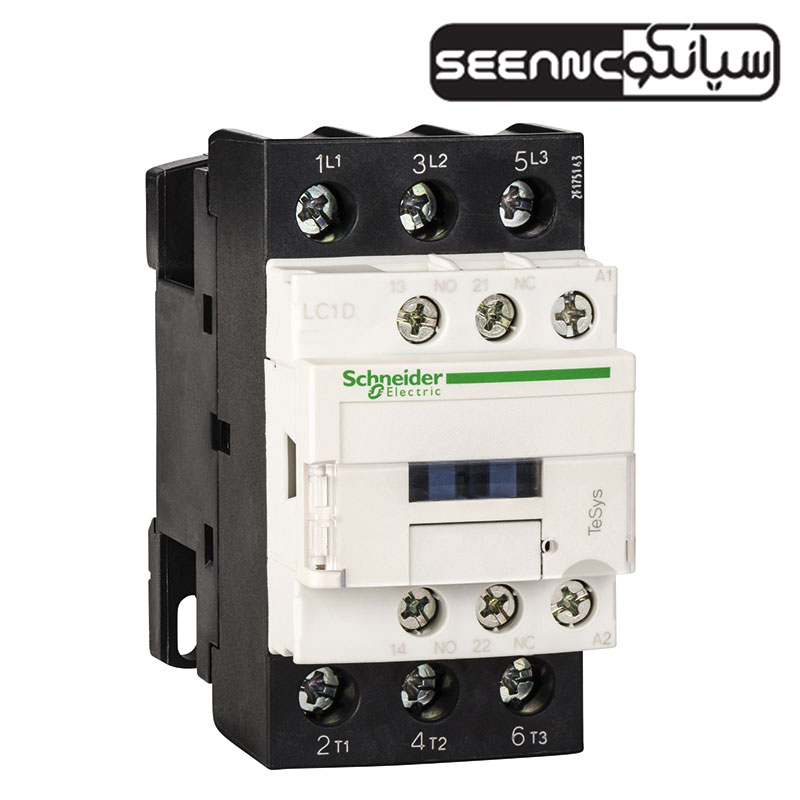

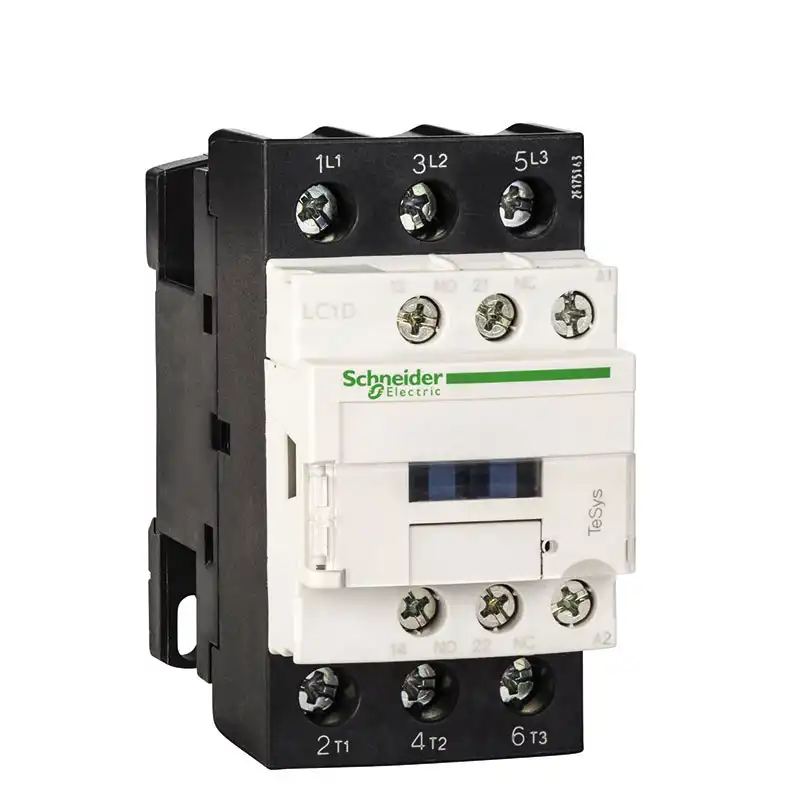

معرفی و خرید کنتاکتور اشنایدر مدل Schneider LC1D32M7

TeSys

Range

TeSys D

Product name

Contactor

Product or component type

LC1D

Device short name

Resistive load

Motor control

Contactor application

AC-1

AC-4

AC-3

Utilisation category

3P

Poles description

3 NO

Power pole contact composition

Power circuit: <= 690 V AC 25…400 Hz

Power circuit: <= 300 V DC

[Ue] rated operational voltage

32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

[Ie] rated operational current

7.5 kW at 220…230 V AC 50/60 Hz (AC-3)
15 kW at 380…400 V AC 50/60 Hz (AC-3)
15 kW at 415…440 V AC 50/60 Hz (AC-3)
18.5 kW at 500 V AC 50/60 Hz (AC-3)
18.5 kW at 660…690 V AC 50/60 Hz (AC-3)
7.5 kW at 400 V AC 50/60 Hz (AC-4)

Motor power kW

2 hp at 115 V AC 50/60 Hz for 1 phase motors
5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
10 hp at 230/240 V AC 50/60 Hz for 3 phases motors
20 hp at 460/480 V AC 50/60 Hz for 3 phases motors
30 hp at 575/600 V AC 50/60 Hz for 3 phases motors

Motor power HP (UL / CSA)

AC at 50/60 Hz

Control circuit type

220 V AC 50/60 Hz

[Uc] control circuit voltage

1 NO + 1 NC

Auxiliary contact composition

6 kV conforming to IEC 60947

[Uimp] rated impulse withstand voltage

III

Overvoltage category

10 A (at 60 °C) for signalling circuit
50 A (at 60 °C) for power circuit

[Ith] conventional free air thermal Current

140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
550 A at 440 V for power circuit conforming to IEC 60947

Irms rated making capacity

550 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

260 A 40 °C – 10 s for power circuit
430 A 40 °C – 1 s for power circuit
60 A 40 °C – 10 min for power circuit
138 A 40 °C – 1 min for power circuit
100 A – 1 s for signalling circuit
120 A – 500 ms for signalling circuit
140 A – 100 ms for signalling circuit

[Icw] rated short-time withstand current

10 A gG for signalling circuit conforming to IEC 60947-5-1
63 A gG at <= 690 V coordination type 1 for power circuit
63 A gG at <= 690 V coordination type 2 for power circuit

Associated fuse rating

2 mOhm – Ith 50 A 50 Hz for power circuit

Average impedance

Power circuit: 690 V conforming to IEC 60947-4-1

Power circuit: 600 V CSA certified

Power circuit: 600 V UL certified

Signalling circuit: 690 V conforming to IEC 60947-1

Signalling circuit: 600 V CSA certified

Signalling circuit: 600 V UL certified

[Ui] rated insulation voltage

1.65 Mcycles 32 A AC-3 at Ue <= 440 V
1.4 Mcycles 50 A AC-1 at Ue <= 440 V

Electrical durability

2 W AC-3
5 W AC-1

Power dissipation per pole

With

Front cover

Plate

Rail

Mounting support

CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508

Standards

DNV
RINA
LROS (Lloyds register of shipping)
CCC
CSA
GL
GOST
BV
UL

Product certifications

Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 2.5…10 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…10 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm²solid without cable end
Power circuit: screw clamp terminals 2 cable(s) 2.5…10 mm²solid without cable end

Connections – terminals

Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2
Power circuit: 2.5 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
Power circuit: 2.5 N.m – on screw clamp terminals – with screwdriver Philips No 2

Tightening torque

12…22 ms closing

4…19 ms opening

Operating time

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1

B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Safety reliability level

15 Mcycles

Mechanical durability

3600 cyc/h 60 °C

Maximum operating rate
